FEATURESĄG
(1) After the shearing process, the stainless steel
strips will bend & distort.
Our machine can straighten and level the strips.
(2) SpeedĄG5 mm/Minute. |
 |
|

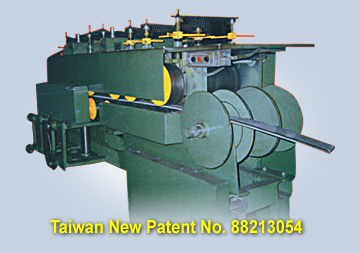

PICTURES SHOWED THE STRIPS
BEFORE & AFTER LEVELING & STRAIGHTENING : |
|
|
|
|
|
|
SPECIFCATIONS OF STAINLESS STEEL STRIP FOR
LEVELING |
|
BASE WEIGHT OF STAINLESS STEEL |
|
Thickness (mm) |
Width (mm) |
Length (m) |
|
25
(biggest) |
30 ~
60 |
6 |
|
22 |
30 ~
80 |
6 |
|
20 |
30 ~
120 |
6 |
|
16 |
30 ~
220 |
6 |
|
12 |
30 ~
260 |
6 |
|
10, 9,
8, 6, 5, 4
(smallest) |
30 ~
280 |
6 |
|
|
|
Type |
Base Weight (kg) |
|
SUS24
(430) |
7.70 |
|
SUS27
(304) |
7.93 |
|
SUS32
(316) |
7.98 |
|
SUS51
(410) |
7.57 |
|
|
Remarks: Minimum length is 360mm,
but no anti-distortion. |
|
|
|
|
